CV-SDIRCCD Flush Mount Bullet Style Heavy Duty Colour CCD IP69 Camera.

Price: $

This Universal Heavy Duty CCD camera is constructed of a metal housing for extreme conditions for Truck ,Caravan , Trailer or Vans  with option of Flush mount with straight (Threaded) or angled collars so it can to mounted almost anywhere on the rear or side of the vehicle to assist when parking. It can also be flush mounted on the LH rear side of Trucks/Vans for Blind spots , especially reversing out of driveways.

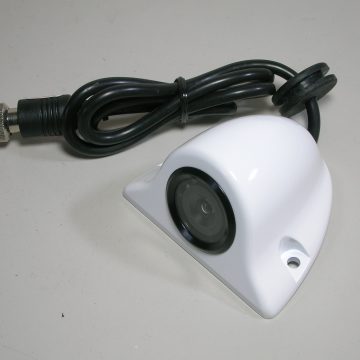

You can get an Optional Dome style metal housing for different mounting position  Top ,Bottom , L&R  Side if you do not want to drill in the vehicles body or no suitable mounting points.

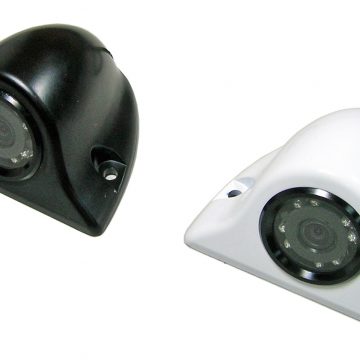

Dome Housing comes in 2 powder coated colours Black or White.

FEATURES AND SPECIFICATIONS:

  • Strong Glass Lens.
  • Metal Housing.

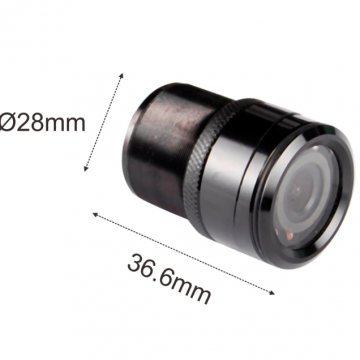

  • Dimensions: 28mm x 36.6mm.
  • Minimum Illumination: 0.0Lux.(IR LED)
  • Viewing Angle:90Degree.
  • Resolution:720 x 480.
  • Image Sensor:1/4″ ASX340 (Japanese Lens).
  • TV Lines: 500TV Lines.
  • Waterproof Grade :IP69 (Splash/Dust Proof,Temporary Immersion).
  • Supply Voltage: 11v-14vDC
  • With IR 8 LEDS (for night vision)
  • 4 Pin Aviation connector.
  • Made in Taiwan.
